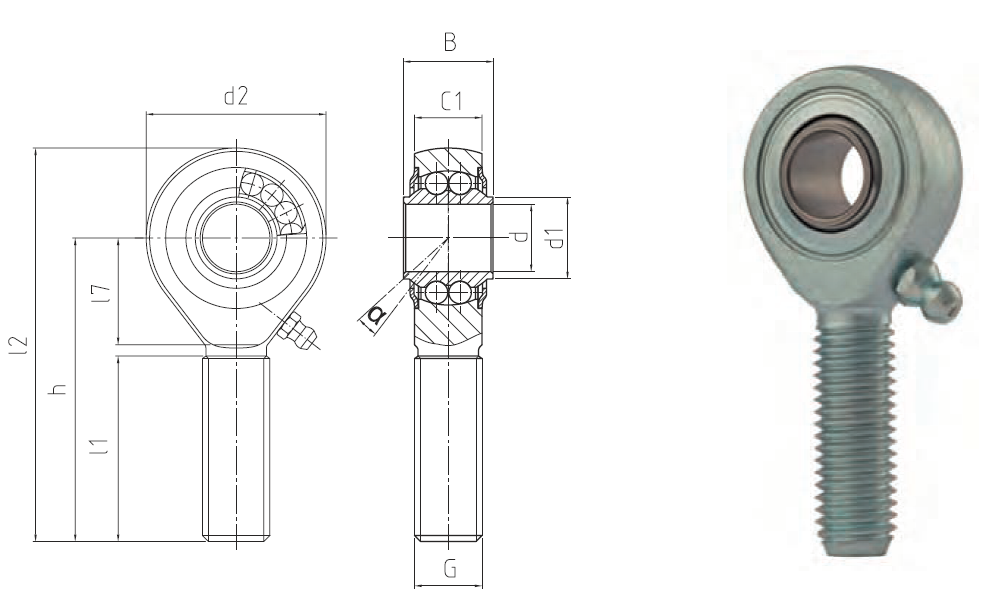

德国DURBAL关节轴承BRM系列是外螺纹可润滑，低维护，屏蔽适配器尺寸符合DIN648，K系列，带整体调心球轴承的重型杆端
A = 径向游隙 : 10 – 30 μm, 低摩擦力
B = 内圈材料为硬化轴承钢，因为偏转角限制，保护肩及保护壳均为精加工
C = 两侧防尘罩
D = 连杆外壳全部为锻钢, 表面硬化
E = 长期保持润滑状态保证了低维护，特别适用于高速大转角以及高速旋转的场合

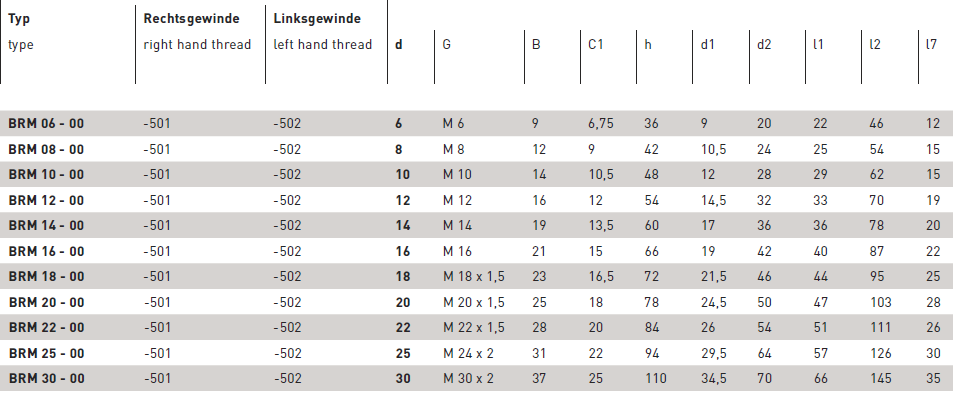

热销型号如下：
| 型号 | 参数 |
| BRM 06-00-501 | Rod End: Bore 6mm, Thd. 6 X 1.0 mm. |
| BRM 06-00-502 | Rod End: Bore 6mm, Thd. 6 X 1.0 mm. LH |
| BRM 06-60-501 | Rod End: Bore 6mm, Thd. 6 X 1.0 mm. Stainless Steel |
| BRM 06-60-502 | Rod End: Bore 6mm, Thd. 6 X 1.0 mm. LH Stainless Steel |
| BRM 08-00-501 | Rod End: Bore 8 MM, RH Thd M8 X 1.25 |
| BRM 08-00-502 | Rod End: Bore 8mm, LH Thd. 8 X 1.25 mm. |
| BRM 08-60-501 | Rod End: Bore 8 MM, Thd M8 X 1.25 mm RH Stainless Steel |
| BRM 08-60-502 | Rod End: Bore 8 MM, Thd M8 X 1.25 mm LH Stainless Steel |
| BRM 10-00-501 | Rod End: Bore 10mm, Thd. 10 X 1.5 mm. |
| BRM 10-00-502 | Rod End: Bore 10mm, Thd. 10 X 1.5 mm. LHx |
| BRM 10-01-501 | Rod End: Bore 10 mm, thread 10 X 1.5, shaft long, h=72 mm, L=42 mm |
| BRM 10-01-502 | Rod End: Bore 10 mm, 10 X 1.5 thread. special Long threaded shaft. L |
| BRM 10-60-501 | Rod End: Bore 10mm, Thd. 10 X 1.5 mm. Stainless Steel |
| BRM 10-60-502 | Rod End: Bore 10mm, LH Thd. 10 X 1.5 mm. Stainless Steel |
| BRM 12-00-501 | Rod End: Bore 12mm, Thd. 12 X 1.75 mm. |
| BRM 12-00-502 | Rod End: Bore 12mm, LH, Thd. 12 X 1.75 mm. |
| BRM 12-60-501 | Rod End: Bore 12mm, Thd. 12 X 1.75 mm. Stainless Steel |
| BRM 12-60-502 | Rod End: Bore 12mm, LH, Thd. 12 X 1.75 mm. Stainless Steel |
| BRM 14-00-501 | Rod End: Bore 14mm, Thd. 14 X 2.0 mm |
| BRM 14-00-502 | Rod End: Bore 14mm, Thd. 14 X 2.0 mm LH |
| BRM 16-00-501 | Rod End: Bore 16mm, Thd. 16 X 2.0 mm |
| BRM 16-00-502 | Rod End: Bore 16mm, Thd. 16 X 2.0 mm LH |
| BRM 16-60-501 | Rod End: Bore 16,Thd. 16 X 2.0 mm Stainless Steel |
| BRM 16-60-502 | Rod End: Bore 16mm, LH Thd. 16 X 2.0 mm Stainless Steel |
| BRM 18-00-501 | Rod End: Bore 18mm, Thd. 18 X 1.5 mm |
| BRM 18-00-502 | Rod End: Bore 18mm, Thd. 18 X 1.5 mm LH |
| BRM 20-00-501 | Rod End: Bore 20mm, Thd. 20 X 1.5 mm |
| BRM 20-00-502 | Rod End: Bore 20mm, Thd. 20 X 1.5 mm LH |
| BRM 22-00-501 | Rod End: Bore 20mm, Thd. 22 X 1.5 mm |
| BRM 22-00-502 | Rod End: Bore 20mm, Thd. 22 X 1.5 mm LH |
| BRM 25-00-501 | Rod End: Bore 25mm, Thd. 24 X 2.0 mm |
| BRM 25-00-502 | Rod End: Bore 25mm, Thd. 24 X 2.0 mm LH |
| BRM 30-00-501 | Rod End: Bore 30mm, Thd. 30 X 2.0 mm |
| BRM 30-00-502 | Rod End: Bore 30mm, Thd. 30 X 2.0 mm LH |
